Workflow: Creating and Using Queries

A Query in FactsDB is a powerful concept that allows you to define reusable, data-driven logical checks. Instead of building complex branches of ANDs and ORs in your Blueprints, you define the logic once in a Query Definition Asset and can then evaluate it anywhere using a single, clean node.

Let's create a query to determine if our player can perform a "special attack". The conditions will be:

• The player's health must be above 25.
• The player must be holding the key.

Step 1: Create a Query Definition Asset

Queries are stored in a dedicated Data Asset. You can have multiple query assets in your project, but it's often convenient to group related queries together.

1. In the Content Browser, right-click and go to Miscellaneous > Data Asset.
2. In the "Pick Data Asset Class" dialog, search for and select FactsDBQueryDefinition.
3. Name the new asset DA_PlayerQueries.

Step 2: Define the Query Logic

Open the DA_PlayerQueries asset. The main editor is a map where each entry represents one query.

1. Click the + icon next to Query Definitions to add a new query.

2. Key (Query Tag): First, we need a Gameplay Tag to identify this query. Create and/or select a tag, for example, Query.Player.CanUseSpecialAttack.

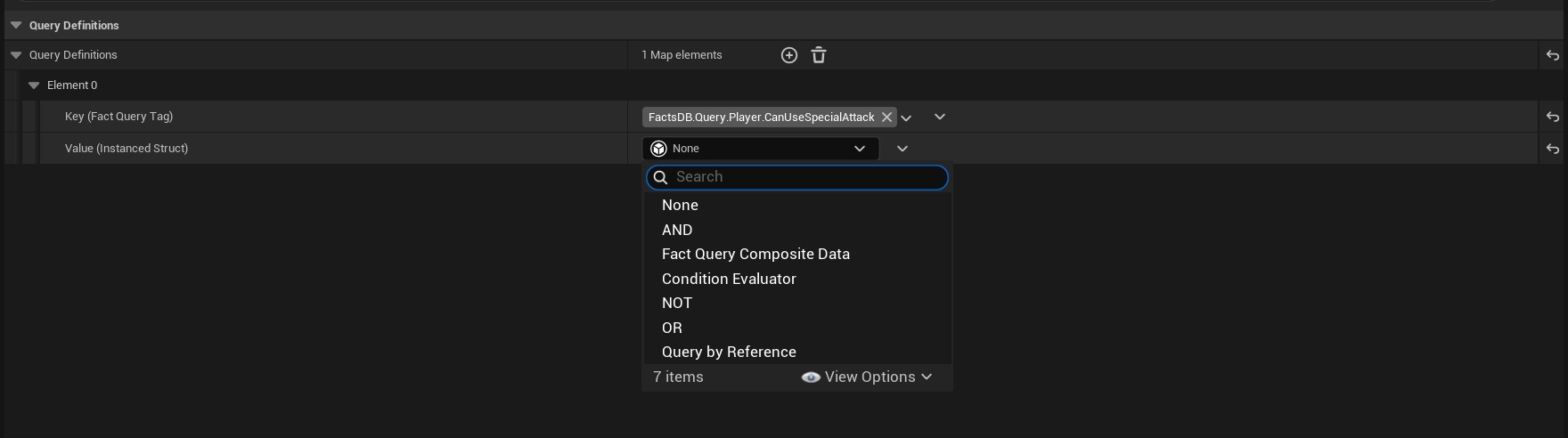

3. Value (Query Logic): This is where we build the logic. By default, it's None. We need an AND block to check both our conditions.

   • Click the dropdown that says None.
   • Select AND.



Now we can add our two conditions to the Sub Queries array inside the AND block.

Condition 1: Health > 25

1. Click the + next to Sub Queries to add the first condition. In the dropdown, select Condition Evaluator.

2. You will see a single, intuitive row appear, representing the entire condition: [Left Hand Side] [Operator] [Right Hand Side].

3. Left Hand Side (LHS): This is the fact you want to check.

   • Schema: Select the Schema containing the player's stats, e.g., Schema.Player.
   • Fact: A dropdown will appear, filtered to facts within that schema. Select Fact.Player.Stat.Health.
   • The Context Source should remain Target, meaning the query will check the health of whatever object it's being evaluated against.

4. Operator:

   • Because Health is a numeric fact (a float), the operator dropdown is automatically populated with relevant comparisons.
   • Select > (Greater).

5. Right Hand Side (RHS): This is the value you're comparing against.

   • You'll see a choice between Fixed (a literal value) and Runtime (another fact). Select Fixed.
   • A numeric input box will appear. Enter 25.0.

Condition 2: HasKey == true

1. Click the + next to Sub Queries again and add another Condition Evaluator.
2. Left Hand Side (LHS):
   • Schema: Schema.Player
   • Fact: Fact.Player.State.HasKey
3. Operator:
   • Notice that because HasKey is a boolean fact, the operator list is now automatically filtered to only == (Equal) and != (Not Equal).
   • Leave it as == (Equal).
4. Right Hand Side (RHS):
   • Select Fixed.
   • Because the LHS is a boolean, a checkbox will appear instead of a number box. Check the box to represent true.

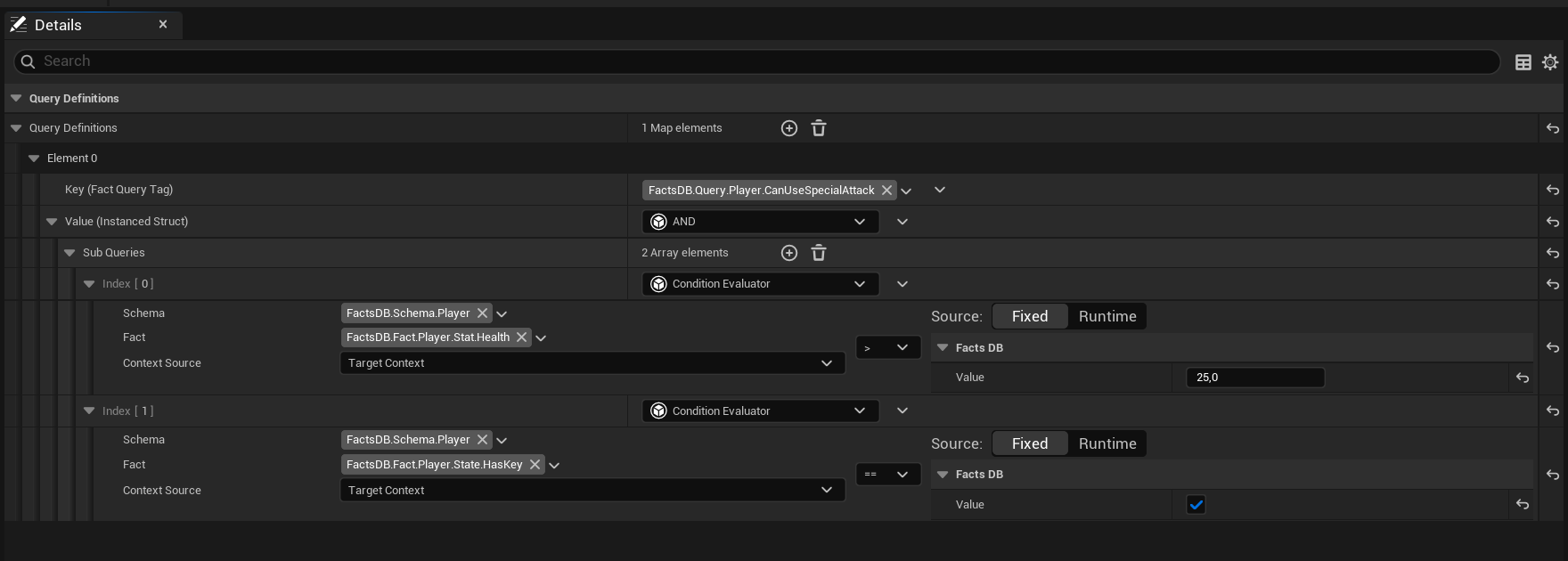

Your final query definition should now look clean and readable:

Save the DA_PlayerQueries asset.

Step 3: Register the Query Asset

Just like with Schemas, the system needs to know where to find your queries.

1. Go to Edit > Project Settings > Game > FactsDB Runtime Settings.
2. Find the Query Definition Assets array.
3. Click + and add our DA_PlayerQueries asset to the list.

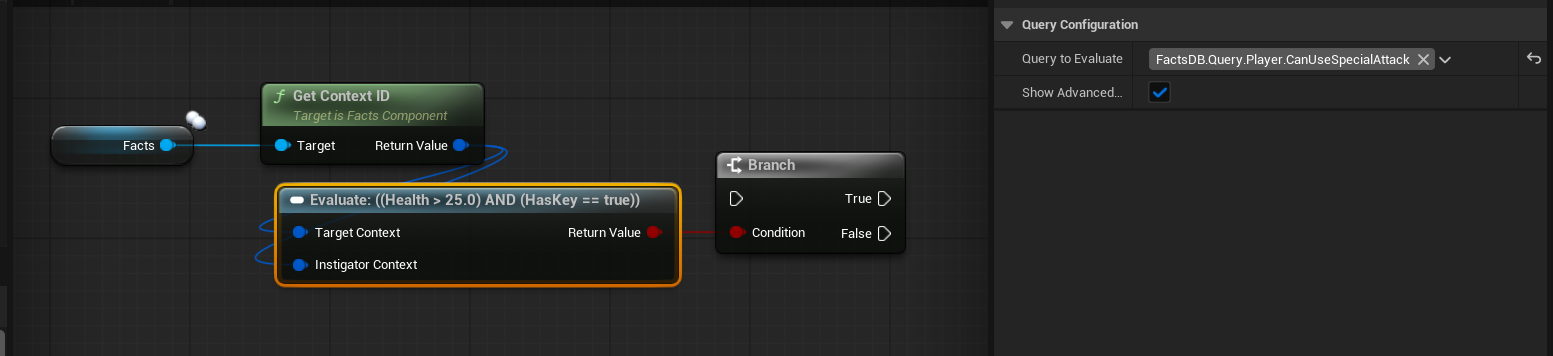

Step 4: Use the Query in Blueprints

Now, using this complex logic in any Blueprint is incredibly simple.

1. In your player Blueprint (or any other graph), add an Evaluate Query node.

2. Select the node. In the Details panel, under "Query Configuration", set the Query To Evaluate to Query.Player.CanUseSpecialAttack.

3. Connect the Context ID of the object you want to test (in this case, our player character's Context ID).

4. The node outputs a single boolean. Connect this to a Branch node.



That's it! You have successfully decoupled your gameplay logic from its implementation. If a designer now decides that the "special attack" also requires the player to have full health, they can simply add another condition to the AND block in DA_PlayerQueries. No Blueprints need to be changed or recompiled. This is the core power of a data-driven approach.

Query by Reference

You can nest queries inside other queries. Instead of adding a Condition, you can add a Query by Reference. This allows you to build complex logical trees out of smaller, reusable pieces. For example, a Query.Player.CanDoAnything might be an AND block that references Query.Player.IsAlive, Query.Player.IsNotStunned, etc.

---

Next Up: Blueprintable Queries
